HSD-9 High Side Driver Board


The HSD-9 High Side Driver board is the easy way to adapt a BCD-10 or other low side switching band decoder to a high side antenna or filter switch.

Antenna switches are either high side or low side switched. There are advantages to each, but it is a pain if your decoder and switch are different types. The HSD-9 is a convenient way to convert the BCD-10 or other decoder to high side switching. Simply place the HSD-9 between the BCD-10 and your switch.

Specifications:

Size:2.4" X 1.9"
Voltage:24V DC
Current:1A

Documentation:

Price: $14.95

HSD-9 High Side Driver Board

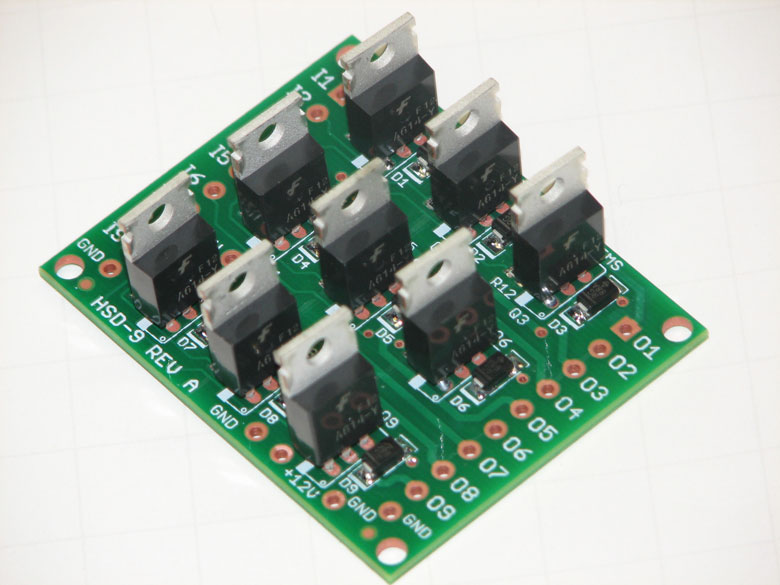

Shipped assembled and tested as shown.

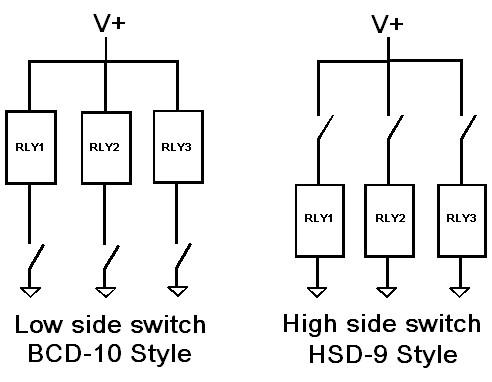

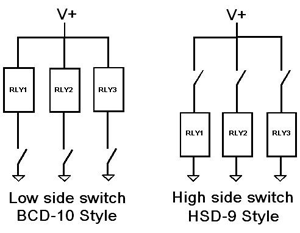

Low side switch - High side switch

QTY Price Description
 $14.95    HSD-9 High Side Driver Board
  US Shipping is $7.00 per order
  International Shipping is $33.00 per order
  Important Information on International Orders
