XT-4Beacon MK2 / CW IDer

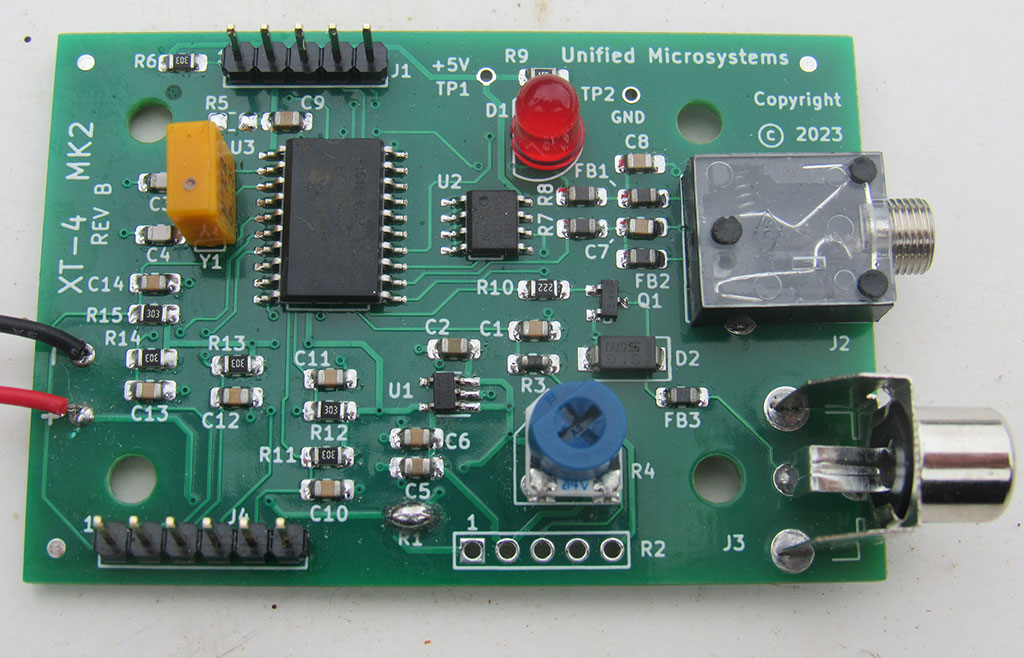

Click to Enlarge Do you have a project requiring a CW IDer? Get a jump-start with the XT-4BEACON MK2, a board-level product.

Recording your ID message could not be simpler. Just plug in your CW paddle and start sending! Program a new message whenever you like.

The XT-4BEACON MK2 can be set up to play back in several modes. Use it for a single ID sequence with a switch closure or let it loop continuously. Either mode can be set to just send the CW message, or start each sequence with a 5 or 20 second key down period.  A new mode allows sending the message every 10 minutes.

The speed is easily set to send at 5, 10, 15, 20, or 25 WPM. Message length can be up to 6 minutes at 25 WPM, more than enough for just about any application. The non-volatile EEPROM memory will hold your messages even if power is lost.

Specifications

  • Size: 1.75 X 2.5"
  • Power: +7VDC to 13VDC, 5ma typical
  • CW speed: Selectable 5, 10, 15, 20, 25 WPM
  • Memory size: Approximately 960 Morse letters.
  • Output keying: Positive Keying only, RCA phono jack output
  • Paddle input: 1/8" (3.5mm) stereo jack input
Shipped assembled and tested as shown.

Documentation:
PDF - User's Manual
Pricing:
XT-4 Beacon MK2 and CW IDer $34.95


XT-4 Beacon MK2 may be ordered from:

DX Engineering logo     Ham Radio Outlet logo

NOTE: Each dealer may or may not carry or have stock on all products. Contact them directly for availability.
