Replacement Meter Lamps for
Hy-Gain and CDE Rotor Control Boxes

Are you tired of replacing the lamp in your rotor box? The ML-6 uses reliable LEDs to replace the hard to find lamp used to illuminate the meter in Hy-gain and CDE Ham-M type control boxes. Six white LEDs provide even illumination, and you can adjust the brightness to the perfect level for your shack.

The ML-6 is easy to install. Peel the backing paper off the Velcro tape and press the circuit board on the top of the meter. Then solder the two wires to the old lamp holder. Adjust the brightness and you are done!

The ML-6 is designed for rotor control boxes with a single bulb above the meter with a clear plastic top.

Size: 4.1" X .5"
Voltage: 24VAC
Current: Approximately 50ma at full brightness
PDF - User's Manual
PDF - Schematic


ML-6 Replacement Meter Lamp$12.95

ML-6 Replacement Meter Lamps may be ordered from:

DX Engineering logo     Ham Radio Outlet logo

NOTE: Each dealer may or may not carry or have stock on all products. Contact them directly for availability.
Click to Enlarge

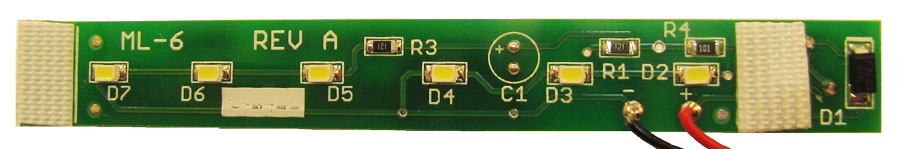

ML-6 Before Installation
Shipped assembled and tested as shown.

Click to Enlarge

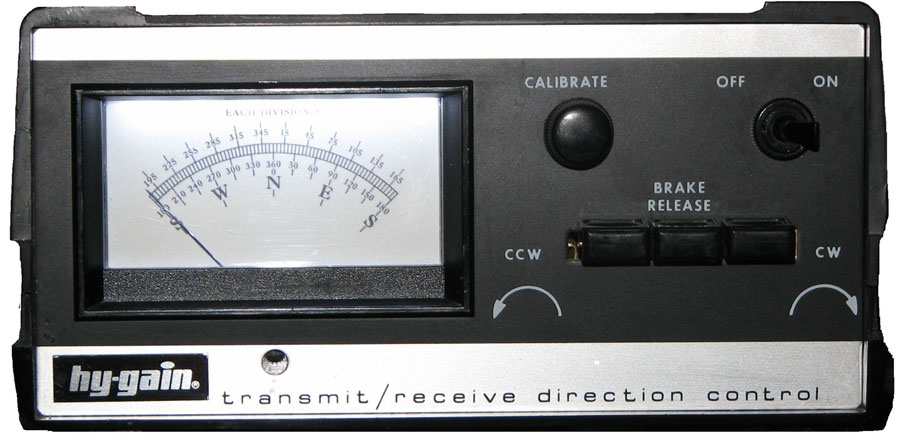

ML-6 Installed in Hy-Gain Control Box
